Mount rear brake guard plate
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

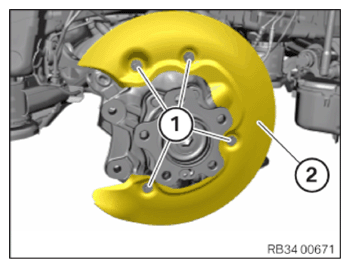

- Install brake guard plate (2).
- Insert screws (1) and tighten them.
TIGHTENING TORQUE SPECIFICATIONS
| Brake protection plate on the rear wheel carrier | ||
| M6x12 Replace screw. | tightening torque | 8 Nm |
Follow-up work
- Refer to INSTALLING REAR BRAKE DISCS (CARBON CERAMIC BRAKE) .
- Refer to GREASING BRAKE PADS, BRAKE ANCHOR PLATE AND BRAKE CALIPER WITH BRAKE PAD PASTE .
- Refer to INSTALLING REAR BRAKE PADS .
- Refer to PLACING THE BRAKE PADS ON THE BRAKE DISK/PUTTING THEM INTO OPERATION .
- Refer to INSTALLING REAR WHEEL ON THE LEFT AND RIGHT .
- Refer to COMMISSIONING OR BEDDING IN OF NEW BRAKE PADS AND BRAKE DISCS (CARBON CERAMIC BRAKE) .
