Fastening the wiring harness section to the cover of the transmission cross member

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

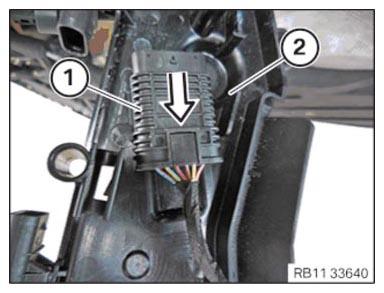

Feed in the connector (1) in the arrow direction at the holder (2) and install it.
The connector (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

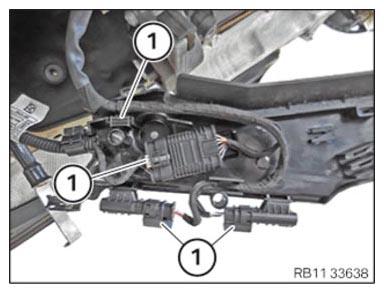

Connect and lock all connectors (1) .
All connectors (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

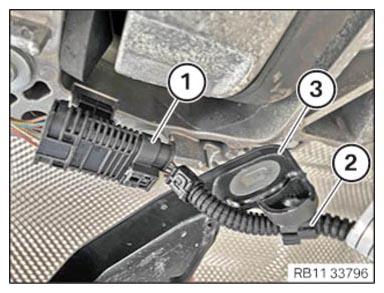

Guide in and position cover (3) .
Lock clamp (2) .
The clamp (2) must engage audibly.
Connect connectors (1) and lock.
The connector (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

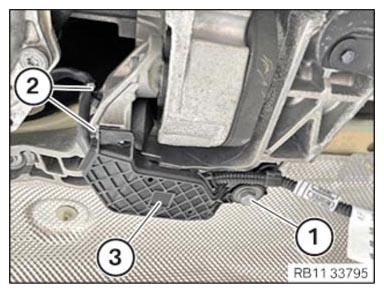

Insert and install the cover (3) .
Tighten down screw (1) .

TIGHTENING TORQUE SPECIFICATIONS

Cover to transmission cross member
Hexagon screw M8	Replace screw. Tightening torque	19 Nm

Secure the clamp (2) .

Courtesy of BMW OF NORTH AMERICA, INC.
