Installing rear brake pads
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

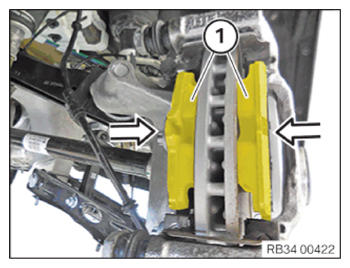

- Install the brake pad (1) in arrow direction.
- If necessary for brake pads with adhesive film, detach the protective film.
- Equipment version of the design clip:
- Replace the design clip (1).
Parts: Design clip
The design clip (1) must be replaced after every disassembly.

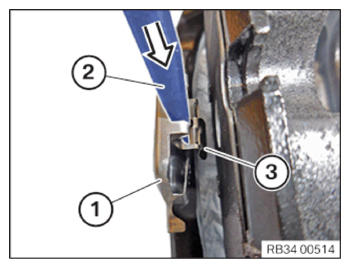

- Attach the design clip (1) and engage it in arrow direction with a screwdriver (2).
- Ensure that the retaining tab (3) is engaged correctly.
- Remove the special tool (cable tie) 2 413 317 .

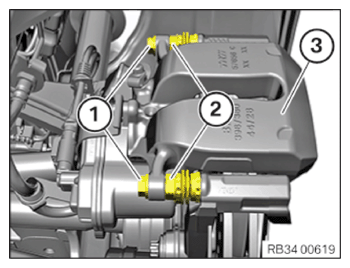

- Mount brake caliper (3).
- Replace screws (1).
Parts: Screws
- Tighten the screws (1), if applicable, hold against the hexagon head (2).
TIGHTENING TORQUE SPECIFICATIONS
| Guide bolt (brake caliper on brake anchor plate) | ||
|---|---|---|
| M8 | Tightening torque | 35 Nm |
- Install the brake pad (1) in arrow direction.
- If necessary for brake pads with adhesive film, detach the protective film.
- Equipment version of the design clip:
- Replace the design clip (1).
Parts: Design clip
The design clip (1) must be replaced after every disassembly.
- Attach the design clip (1) and engage it in arrow direction with a screwdriver (2).
- Ensure that the retaining tab (3) is engaged correctly.
- Remove the special tool (cable tie) 2 413 317 .
- Mount brake caliper (3).
- Replace screws (1).
Parts: Screws
- Tighten the screws (1), if applicable, hold against the hexagon head (2).TIGHTENING TORQUE SPECIFICATIONS
Guide bolt (brake caliper on brake anchor plate) M8 Tightening torque 35 Nm
