Install wind deflector

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

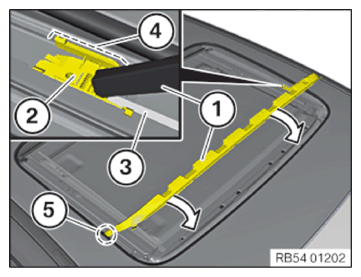

Insert the wind deflector (1) with the holder (2) and the spring (3) at the recess (4) into the frame.
Insert the wind deflector (1) in the area (5) into the respective holder.
Fold the wind deflector (1) down.

Courtesy of BMW OF NORTH AMERICA, INC.
Check the correct position of the leaf spring (1) on the left and right.

Courtesy of BMW OF NORTH AMERICA, INC.

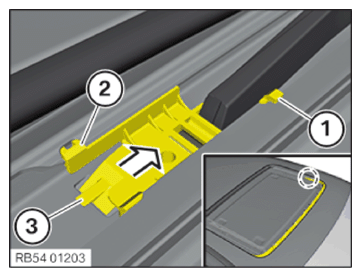

Slide the wind deflector with the holder forward until the retaining lugs (1), (2) and (3) engage.
Make sure the holder has engaged correctly.

Courtesy of BMW OF NORTH AMERICA, INC.
