Remove the gate pair for the glass slide/tilt sunroof
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
Initiate manual movements of guide element via the drives using an offset hexagon socket key.
Initiate manual movements of guide element via the drives using an offset hexagon socket key.
- Loosen left and right screw (1).
- Move back the gate (1) as shown.NOTE: TECHNICAL INFORMATION
Make sure that water channel is pushed back as well. If necessary, secure the water channel with a cord so that it can be pulled r out again later. - Lever out the stop (2) towards the outside.
- Move the gate (1) up to the recess (2).
- Hold down the lever (1).
- Shift the gate (2) until it is positioned in the vent position.
- Lever out the control lever (1) from the guide rail and fold it forwards.
- Remove the control lever from the gate.

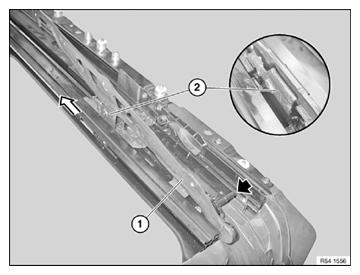

- Hold lid gate (1) at bolt (see arrow).
- Shift the drive carriage (2) backwards until it is possible to remove the lid gate (1) from the drive carriage (2).
- Reposition the lid gate (1) and remove it from the gate.
