Removing the complete glass slide/tilt sunroof

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

Detach all four water drain hoses (1) .

Courtesy of BMW OF NORTH AMERICA, INC.

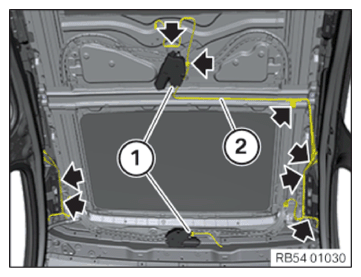

Unlock and disconnect plug connections (1) .
Loosen wiring harness (2) at all cable clips (arrows) and feed back.

Courtesy of BMW OF NORTH AMERICA, INC.
NOTE:
RISK OF DAMAGE
Heavy component .
Heavy components can lead to injury or damage .
- Remove and install heavy components with the aid of another person/other persons.
Protect glass slide/tilt sunroof from falling together with a second person.

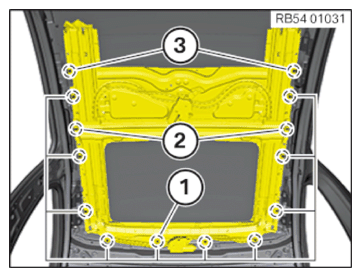

Loosen screws (1) to (3) .

Fig 1: Glass Slide/Tilt Sunroof Screws Loosening Sequence
Courtesy of BMW OF NORTH AMERICA, INC.
Remove glass slide/tilt sunroof from the vehicle with a helper.
