Remove the wind deflector holder

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

Precondition

Glass slide/tilt sunroof panel is fully open.

Preliminary work

REMOVING WIND DEFLECTOR .

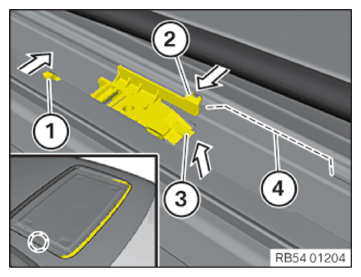

Release the detents in sequence (1) , (2) and (3) each in the direction of the arrow.
Slide the holder back to the recess (4) and out of the frame.

Courtesy of BMW OF NORTH AMERICA, INC.
