Installing the drive for the inner backrest width adjustment
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

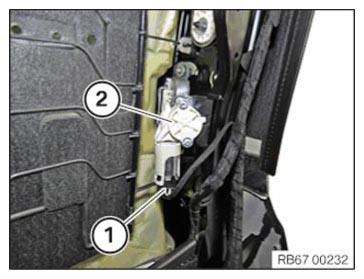

- Thread in drive (2).
- Connect plug (1).

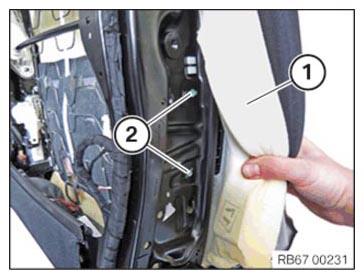

- Slightly fold backrest cover (1) to one side.
- Secure drive with blind rivets (2).
- Attach the backrest cover (2) in this area (3).
- Secure the clip (1).
- Attach the backrest cover (1) in the signaled area.
Follow-up work
- Refer to INSTALLING INNER COVER ON FRONT SEAT .
- Refer to INSTALLING THE BOTTOM REAR PANEL ON THE FRONT SEAT REAR PANEL .
- Refer to INSTALLING THE TOP REAR PANEL ON THE FRONT SEAT REAR PANEL .
- Refer to INSTALLING FRONT SEAT .
