Install The Outer Section Of The B-Pillar

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: TECHNICAL INFORMATION
Use only approved spot welder for repair.
For additional information see: WORKSHOP EQUIPMENT (BMW AND MINI VEHICLES) REP-ALG-RAGRP41-4101300 - V.12 (M5 2018-2022, M5 Competition 2019-2022, M5 CS 2022) .

NOTE: TECHNICAL INFORMATION
For additional information see: INSTALLING CAVITY SEALING (EXPANDED) REP-REP-RAGRP41-4107101 - V.2 (M5 2018-2022, M5 Competition 2019-2022, M5 CS 2022) .

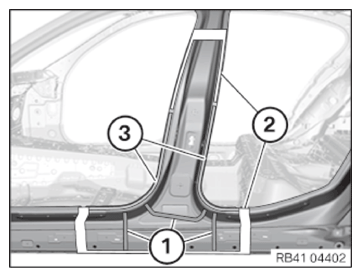

Apply sealant D1 to the cavity sealing elements (1).
CONSUMABLE DESCRIPTION

Sealant D1 (seam sealing) 310 ml 83422409985

Courtesy of BMW OF NORTH AMERICA, INC.
Install the new part and reinforcement plates and weld in areas (2) and (3) as per the new part preparation.
