Removing the rubber mount of the rear axle differential mounting
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Hot exhaust system.
Risk of burning!
Risk of burning!
- Any work must exclusively be carried out with an exhaust system that has cooled down.
Preliminary work
- Refer to REMOVING THE COVER OF THE CAMBER CONTROL ARM ON THE LEFT AND RIGHT .
- Refer to REMOVING THE REAR DIFFUSER .
- Removing the undershield on the left fuel tank.
- Loosen screws (1).
- Loosen screws (2).
- Remove the undershield (1) at the fuel tank on the left.
- Refer to REMOVING UNDERSHIELD ON THE FUEL TANK ON THE RIGHT .
- Refer to REMOVING REINFORCEMENT STRUT .
- Removing rear tunnel connecting support.
- Loosen screws (1).
- Loosen screws (2).
- Removing rear tunnel connecting support(3).
- Refer to REMOVING EXHAUST SYSTEM .
- Refer to REMOVING THE HEAT SHIELD AT THE REAR .
- Refer to LOWERING REAR AXLE DIFFERENTIAL .

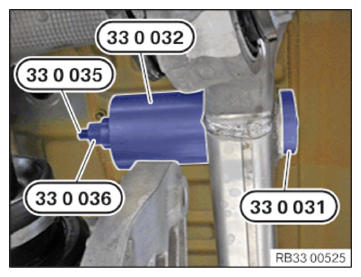

- Pull out and remove the rubber mount with special tools 0 496 507 (33 0 031) , 0 496 508 (33 0 032) , 0 496 511 (33 0 035) and 0 496 512 (33 0 036) .
