Installing wheel electronics
WARNING: This page is about a different car, the 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, 2019 BMW M5, and 2018 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
It is absolutely necessary to replace the tire valve to prevent leaks.
Before installing the tire valve: Clean the bore in the wheel rim thoroughly and deburr where required.
It is absolutely necessary to replace the tire valve to prevent leaks.
Before installing the tire valve: Clean the bore in the wheel rim thoroughly and deburr where required.

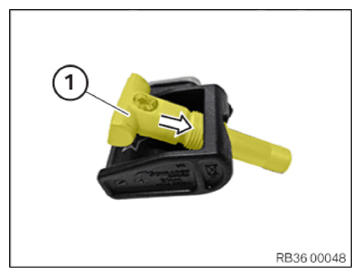

- Insert the valve insert (1) into the wheel electronics in the arrow direction.

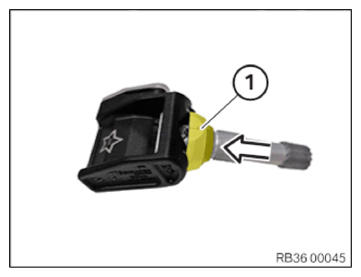

- Fit the sealing ring (1) in the arrow direction.
- Ensure correct installation position.

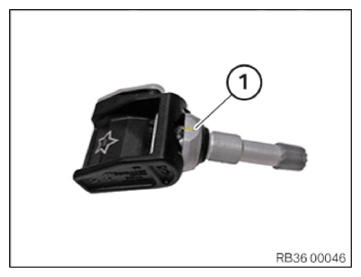

The mark (1) on the sealing ring must point upwards.

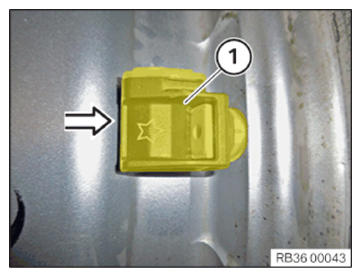

- Insert the valve insert with the wheel electronics (1) into the cleaned bore in the rim.
The wheel electronics must rest on the rim.
- Replace the union nut (1).
Parts: Coupling nut
- Screw on the union nut (1) manually until it abuts.
- Press the wheel electronics evenly into the rim base.
- Tighten union nut (1).TIGHTENING TORQUE SPECIFICATIONS
Tire valve to wheel rim Replace union nut.
Tighten screw connection in one go.
Do not retighten the screw connection.Tightening torque 8 Nm - Make sure that the wheel electronics rests evenly on the rim even after tightening.
