Remove the transfer box (ATC 13-1)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Hot exhaust system
.
Risk of burning!
Risk of burning!
- Any work must exclusively be carried out with an exhaust system that has cooled down.
Preliminary work
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to REMOVING THE REAR DIFFUSER .
- Refer to REMOVING THE UNDERSHIELD ON THE LEFT FUEL TANK .
- Refer to REMOVING UNDERSHIELD ON THE FUEL TANK ON THE RIGHT .
- Refer to REMOVING REINFORCEMENT STRUT .
- Refer to REMOVING REAR TUNNEL CONNECTING SUPPORT .
- Refer to REMOVING EXHAUST SYSTEM .
- Refer to REMOVING THE HEAT SHIELDS .
- Refer to REMOVING TRANSMISSION CROSS-MEMBER .
- Refer to PARTIALLY LOOSENING THE PROP SHAFT .
- Unscrew the bolt (1) and disconnect the ground strap (2).
- Disconnect connector (1) from transfer box control unit (longitudinal torque distribution) (2).

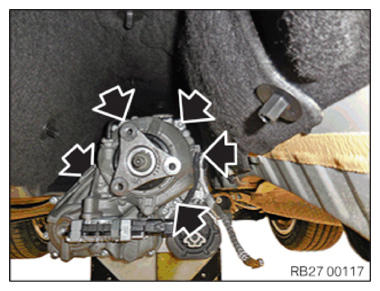

- Unscrew the screw connection (arrows) of the transfer box.
- Tie the front prop shaft to the underbody.
It is imperative to prevent damage to the surface coating!
- Carefully pull the transfer box off.
