Install the rear panel on the rear seat backrest in the center
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

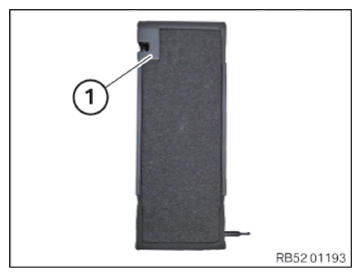

- Position the rear panel (1).

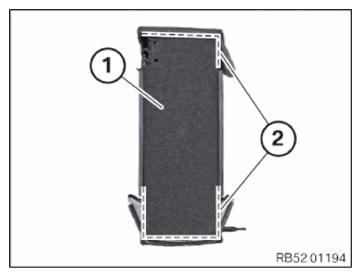

- Clip the welt of the backrest cover in with the special tool 0 496 569 (00 9 325)
along the broken line (2).
- Clip in the trim (1).
