Fasten the backrest cover on the backrest frame
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

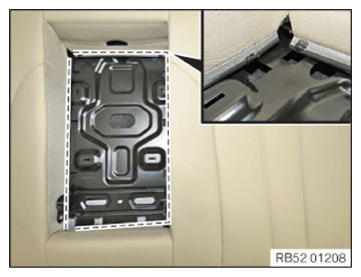

- Attach the backrest cover in the marked area.

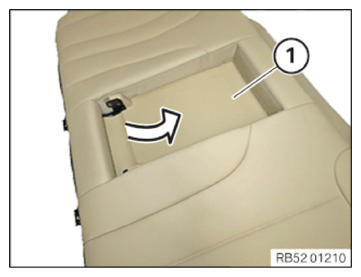

- Clip in the trim (1) in the direction of the arrow.

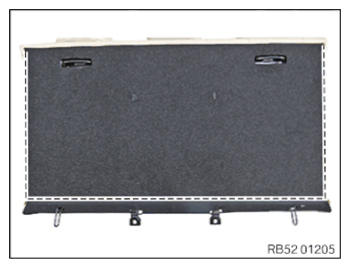

- Attach and fasten the backrest cover in the marked area.
Follow-up work
- Refer to INSTALLING THE GUIDE SLEEVE FOR THE REAR HEAD RESTRAINT .
- Refer to INSTALLING THE HEAD RESTRAINT AT THE REAR CENTER .
- Refer to INSTALLING THE HEAD RESTRAINT AT THE REAR .
- Refer to REMOVING REAR SEAT BACKREST .
- Refer to INSTALLING THE REAR CENTER ARMREST .
- Refer to INSTALLING THE REAR SEAT BENCH .
