Installing the seat cover (M CFRP bucket seat)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components .
Scratches, surface damage .
Careless handling of tools and sharp-edged components .
Scratches, surface damage .
- Protect working area.
- Handle tools and components carefully.
- Position the seat cover (1) correctly.
- Assemble the seat cover (1) with the heating element (2) and the foam rubber padding (3) correctly.

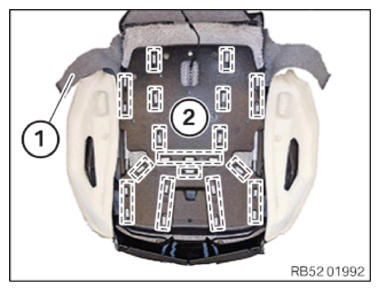

- Clip all clips in the marked areas of the seat cover (1) into the foam cushion (2)
Follow-up work
- Refer to INSTALLING THE SEAT COVER WITH CUSHION (M CFRP BUCKET SEAT) .
- Refer to INSTALLING THE FRONT SEAT TRIM (M CFRP BUCKET SEAT) .
- Refer to INSTALLING THE INNER SEAT TRIM (M CFRP BUCKET SEAT) .
- Refer to INSTALLING THE OUTER SEAT TRIM (M CFRP BUCKET SEAT) .
- Refer to INSTALLING THE INNER COVER ON THE FRONT SEAT .
- Refer to INSTALLING OUTER COVER ON FRONT SEAT .
- Refer to INSTALLING DRIVER'S SEAT .
