Removing the outer seat trim (M CFRP bucket seat)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: RISK OF DAMAGE
Damage of high-quality surfaces .
Plastic wedges can damage high-quality surfaces .

Protect surfaces from damage.

NOTE: RISK OF DAMAGE
Careless handling of tools and sharp-edged components .
Scratches, surface damage .

Protect working area.
Handle tools and components carefully.

Preliminary work

Refer to REMOVING OUTER COVER ON FRONT SEAT .

NOTE: RISK OF DAMAGE
Damage of high-quality surfaces .
Plastic wedges can damage high-quality surfaces .

Protect surfaces from damage.

NOTE: RISK OF DAMAGE
Careless handling of tools and sharp-edged components .
Scratches, surface damage .

Protect working area.
Handle tools and components carefully.

Loosen screws (1) and remove holder (2).

Courtesy of BMW OF NORTH AMERICA, INC.

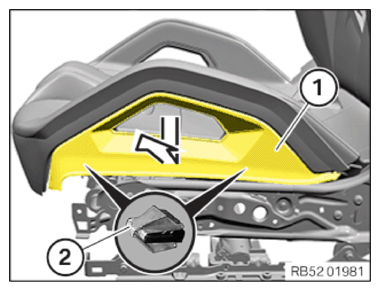

Carefully unclip the outer seat trim (1) from the clips (2) using a suitable tool.
Remove the seat trim (1) in the arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.
