Remounting small parts
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
Different variants may be installed depending on the vehicle equipment.
Different variants may be installed depending on the vehicle equipment.
NOTE:

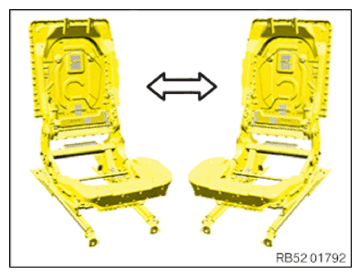

Schematic diagram is for example purposes. Some parts may differ in certain details.
NOTE:
During a replacement, remount all installed parts and/or replace as necessary.
- Remount all installed parts of the seat frame/backrest frame that are not included among the new parts.
