Installing the control unit for the fuel pump control electronics
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

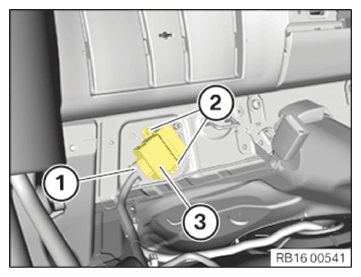

- Install the control unit for fuel pump control electronics (3).
- Replace the plastic nuts (2).
Parts: Plastic nuts.
Position and tighten the plastic nuts (2).
TIGHTENING TORQUES SPECIFICATION
| Control unit for the electronic fuel pump control module on the body | ||
| Replace plastic nut. | tightening torque | 4 Nm |
Follow-up work
- Refer to INSTALLING THE REAR SEAT BENCH .
- Refer to PUTTING THE FUEL PUMP CONTROL ELECTRONICS INTO OPERATION .
