Install delivery unit
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
- Install the delivery unit into the fuel tank.
- Insert the fuel filter with the holder into the fuel tank.

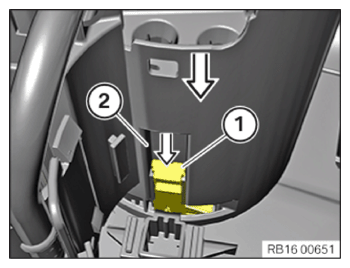

- Guide in the delivery unit (1) from above in the arrow direction and lock it in place.
The delivery unit must snap into place correctly in the mount.
- Lock the lock (2) downward in the arrow direction.

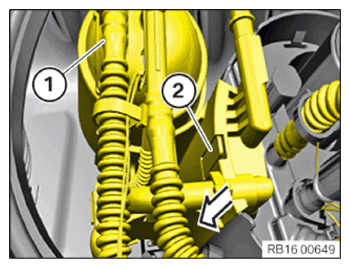

- Feed the fuel filter with the holder (1) from the top into the delivery unit and engage it.
Detent (2) must engage correctly.
- Check the locking mechanisms of the snap fastener for damage and replace if necessary.

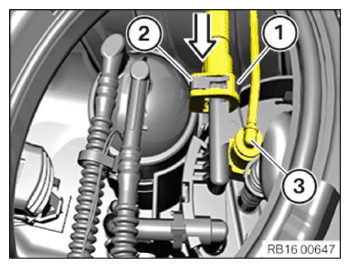

- Ensure that the snap-in lugs (1) and (2) engage correctly.
- Fit and lock snap fastener.
The snap fastener must be seen and heard to engage.
- Ensure correct locking of the snap fastener by means of a tensile sample.
- Position snap fastener (3) and lock.
Mount cable tie
Check

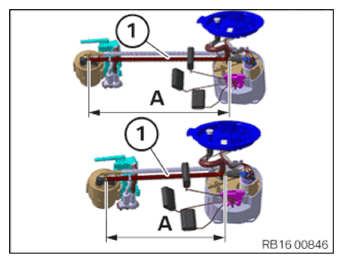

- Check the hose length (1) of the delivery unit and note further procedure accordingly.
Result
» The hose length (1) is approx. (A) 340 mm. The delivery unit has part number 16 11 7 856 997.
Measure
- Mount the cable tie (see the following step).
Check
Result
» The hose length (1) is approx. (A) 261 mm. The delivery unit has the part number: 16 11 9 502 287.
Measure
- Do not mount any cable ties.
- Replace the cable ties (1).
Parts: Cable tie

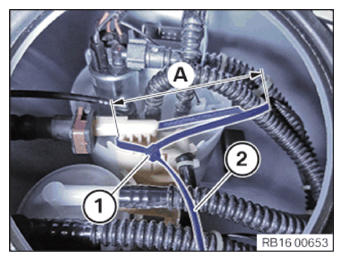

- Mount the cable tie (1) between the holder for the fuel filter and the corrugated tubing.
- Close the cable ties (1) until the distance (A) is reached.
Gap (A) = 100 mm
- Remove overlength of the cable tie (2).
- Connect connector (1).
- Replace sealing ring (1).
Parts: Sealing ring
- Mount the flange lid (1) in arrow direction.
Follow-up works
- Refer to CLOSING THE LOCKING RING .
- Refer to INSTALLING THE REAR SEAT BENCH .
- Refer to FILLING FUEL TANK .
