Installing the rear fuel supply line
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
- Position the fuel delivery line.

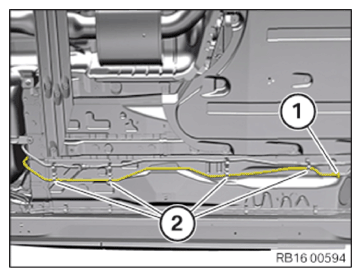

- Position the snap fastener (1) and connect.
- Clip the fuel supply line into the holders (2) .

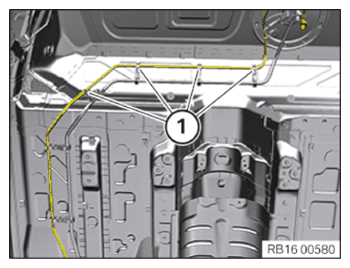

- Clip the fuel supply line into the holders (1) .
Follow-up work
- Refer to INSTALLING THE UNDERSHIELD ON THE SIDES .
- Refer to INSTALLING FUEL TANK .
- Refer to INSTALLING TANK COVER ON LEFT AND RIGHT .
- Refer to INSTALLING THE COMPLETE PROP SHAFT .
- Refer to INSTALLING THE HEAT SHIELDS .
- Refer to INSTALLING EXHAUST SYSTEM .
- Refer to INSTALLING THE REAR TUNNEL CONNECTING SUPPORT .
- Refer to INSTALLING THE REINFORCEMENT STRUT .
- Refer to INSTALLING UNDERSHIELD ON THE FUEL TANK ON THE RIGHT .
- Refer to INSTALLING THE UNDERSHIELD ON THE LEFT FUEL TANK .
- Refer to INSTALLING THE REAR DIFFUSER .
- Refer to CONNECTING DELIVERY UNIT .
- Refer to INSTALLING THE REAR SEAT BENCH .
- Refer to INSTALLING THE REAR WHEEL ARCH COVER ON THE RIGHT .
- Refer to MOUNTING THE REAR RIGHT WHEEL .
- Refer to FILLING FUEL TANK .
