Remove fuel tank
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Hot exhaust system.
Risk of burning!
Risk of burning!
- Any work must exclusively be carried out with an exhaust system that has cooled down.
Preliminary work
- Refer to SUCTIONING THE FUEL TANK .
- Refer to REMOVING THE REAR RIGHT WHEEL .
- Refer to REMOVING RIGHT REAR WHEEL ARCH COVER .
- Refer to REMOVING REAR SEAT BENCH .
- Refer to DISCONNECTING DELIVERY UNIT .
- Refer to REMOVING THE REAR DIFFUSER .
- Refer to REMOVING THE UNDERSHIELD ON THE LEFT FUEL TANK .
- Refer to REMOVING UNDERSHIELD ON THE FUEL TANK ON THE RIGHT .
- Refer to REMOVING REINFORCEMENT STRUT .
- Refer to REMOVING REAR TUNNEL CONNECTING SUPPORT .
- Refer to REMOVING EXHAUST SYSTEM .
- Refer to REMOVING THE HEAT SHIELDS .
- Refer to REMOVING THE COMPLETE PROP SHAFT .
- Refer to REMOVING TANK COVER ON LEFT AND RIGHT .
WARNING:
Working on fuel system.
Risk of fire! Danger of explosion!
Risk of fire! Danger of explosion!
- When working on the fuel system, make sure the workstation has sufficient ventilation, e.g., by means of extraction.
- Tightly seal off open lines and connections; collect any leakage fuel directly at the point of exit.
- No fire, sparks, open flames or smoking.
WARNING:
Contact with hazardous fluids.
Hazardous to health!
Hazardous to health!
- Note and follow safety instructions on containers.
- Conduct all work in appropriate personal protective equipment only.
NOTE:
TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
- Loosen hose clamp (1).
- Detach the rubber hose from the fuel tank in arrow direction.

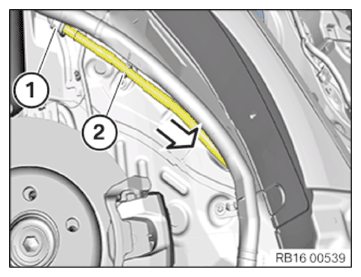

- Unlock and disconnect snap fastener (1).
- Detach the fuel filler neck vent pipe from the holder (2).
- Guide the fuel filler neck vent pipe through the body in the arrow direction while the fuel tank is being lowered.

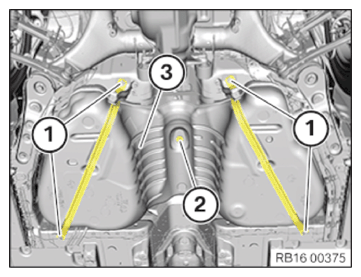

- Heavily support the fuel tank (3).
- Release screws (1) and remove the retaining straps.
- Unscrew the nut (2) and lower the fuel tank (3).
