Install both catalytic converters near engine on bottom
- Thread in the catalytic converter (3) toward the top.
- Position the catalytic converter (3) at the stud bolts (1).
- Tighten nuts (2).
| Bottom catalytic converter | ||
| Nut M8 Replace nuts. | tightening torque | 23 Nm |
- Replace V-band clamp.
Parts: V-band clamp
- Replace gasket.
Parts: Seal
- Slide the V-clip (2) towards the bottom onto the catalytic converter near engine.
- Position the V-ribbon clip on the catalytic converter near the engine.
- Tighten down screw (1).
| Top catalytic converter to bottom catalytic converter | ||
| V-band clamp Replace V-band clamp. | Tightening torque | 14 Nm |
Variant with gasoline particulate filter cylinder 1 through 4
- Guide in the differential pressure sensor upwards with the pressure line.

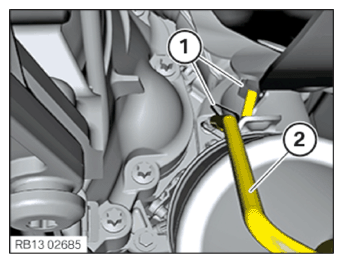

- Clip the pressure line (2) into the clamps (1).
- Clip the differential pressure sensor (2) with the pressure pipe into the clamps (1).
- Tighten nut (2).
| Differential pressure sensor to holder | ||
| Nut M5 | tightening torque | 5.5 Nm |
- Connect connectors (1) and lock.
- Grease the thread on the exhaust system with high-temperature assembly paste.
| High-temperature | 10 g, | 83230309003 |
| assembly paste | Tube |
- Tighten nut (1).
| Pressure line on catalytic converter | ||
| Pressure line | Tightening torque | 40 Nm |
Fastening the prop shaft (partially removed)
- Check centering (1) for damage and replace if necessary.
- Apply a thin coat of grease to the soft centering (1), if necessary.
The hard centering (2) must not be greased.
| Lubricating grease | 100 g, | 83 19 0 447 |
| Olistamoly 2 LN 584 LO | Tube | 919 |
- Replace the screws and the self-locking nuts.
Parts: Screws, self-locking nuts
- Assemble the screw connections (1) of the flexible disc (2) and the three-hole flange (3) according to the self-affixed identification.
This should prevent a humming noise from the drive train during driving.
- Hand-tighten screws and nuts (arrows), but do not tighten fully.
- Install central mount (1) into the transmission tunnel with the designation TOPPING facing upwards.
- Position central mount.
- Hand-tighten the bolts (1), but do not tighten fully.
- Replace screws.
Parts: Screws
- Counter-hold the screws of the flexible disc on the nut and tighten with the screws.
| Front flexible disc to prop shaft | ||
| M12 Replace screws. Joining torque and angle rotation must be adhered to. Tightening via screw. |
Joining torque Angle of rotation |
55 Nm 90° |
- Secure the special tool 0 490 504 (00 9 120) with the special tool 0 495 108 (00 9 130) on the vehicle underbody and continue to screw it in according to the angle of rotation.
- Tighten down screws (1).
| Central mount to body | ||
| M8 | Tightening torque | 19 Nm |
Installing transmission cross member .
- Install the transmission cross member (2).
- Tighten down screws (1).
| Transmission cross member to body | ||
| M8 | tightening torque | 19 Nm |
- Release the luggage strap (1) from the transmission.
- Remove the special tools 2 219 012 and 0 495 498 (23 4 050) .
Installing the heat shields
- Install heat shield (1).
- Tighten nuts and screws (arrows).
| Heat shield to underbody | ||
| Screws and nuts | Tightening torque | 3 Nm |
- Install heat shield (1).
- Tighten nuts and screws (arrows).
| Heat shield to underbody | ||
| Screws and nuts | Tightening torque | 3 Nm |
Install the stiffening plate
- Insert the thrust field (3) on the covers of the steering assembly (2) and position.
- Replace the bolts (arrows).
Parts: Screws
- Tighten screws (arrows).
| Thrust field to front axle support | ||
| M8 Replace screws. | Joining torque Angle of rotation |
25 Nm 70° |
- Tighten down screws (1).
| Underbody protection | ||
| screw | Tightening torque | 3 Nm |
- Insert the undershield (1).
- Tighten all bolts and nuts (arrows).
- Feed catalytic converter near engine (3) out upwards.
- Position catalytic converter near engine (3) on stud bolts (1).
- Tighten nuts (2).
| Bottom catalytic converter | ||
| Nut M8 Replace nuts. | tightening torque | 23 Nm |
- Replace V-band clamp.
Parts: V-band clamp
- Replace gasket.
Parts: Seal
- Slide the V-clip (1) towards the bottom onto the catalytic converter near engine.
- Position the V-clip (1) on the catalytic converter near engine.
- Tighten down screw (2).
| Top catalytic converter to bottom catalytic converter | ||
| V-band clamp Replace V-band clamp. | Tightening torque | 14 Nm |
Variant with gasoline particulate filter cylinder 5 through 8
- Guide in the differential pressure sensor upwards with the pressure line.
- Clip the differential pressure sensor (2) with the pressure pipe into the clamps (1).
- Tighten nut (2).
| Differential pressure sensor to holder | ||
| Nut M5 | tightening torque | 5.5 Nm |
- Connect connectors (1) and lock.
- Grease the thread on the exhaust system with high-temperature assembly paste.
| High-temperature | 10 g, | 83230309003 |
| assembly paste | Tube |
- Clip the pressure line (3) into the clamps (2).
- Tighten nut (1).
| Pressure line on catalytic converter | ||
| Pressure line | Tightening torque | 40 Nm |
Positioning transmission
- Pump the transmission up with the special tools 0 495 498 (23 4 050) and 2 219 012 and position.
Notes on universal transmission support are a fundamental requirement for these repair instructions and must be complied with at all times.
- Transmission must be secured to the support with the tensioning strap (1).
Fastening the prop shaft (partially removed)
- Check centering (1) for damage and replace if necessary.
- Apply a thin coat of grease to the soft centering (1), if necessary.
The hard centering (2) must not be greased.
| Lubricating grease | 100 g, | 83 19 0 447 |
| Olistamoly 2 LN 584 LO | Tube | 919 |
- Replace the screws and the self-locking nuts.
Parts: Screws, self-locking nuts
- Assemble the screw connections (1) of the flexible disc (2) and the three-hole flange (3) according to the self-affixed identification.
This should prevent a humming noise from the drive train during driving.
- Hand-tighten screws and nuts (arrows), but do not tighten fully.
- Install central mount (1) into the transmission tunnel with the designation TOPPING facing upwards.
- Position central mount.
- Hand-tighten the bolts (1), but do not tighten fully.
- Replace screws.
Parts: Screws
- Counter-hold the screws of the flexible disc on the nut and tighten with the screws.
| Front flexible disc to prop shaft | ||
| M12 Replace screws. Joining torque and angle rotation must be adhered to. Tightening via screw. |
Joining torque Angle of rotation |
55 Nm 90° |
- Secure the special tool 0 490 504 (00 9 120) with the special tool 0 495 108 (00 9 130) on the vehicle underbody and continue to screw it in according to the angle of rotation.
- Tighten down screws (1).
| Central mount to body | ||
| M8 | Tightening torque | 19 Nm |
Installing transmission cross member .
- Install the transmission cross member (2).
- Tighten down screws (1).
| Transmission cross member to body | ||
| M8 | tightening torque | 19 Nm |
- Release the luggage strap (1) from the transmission.
- Remove the special tools 2 219 012 and 0 495 498 (23 4 050) .
Installing the heat shields
- Install heat shield (1).
- Tighten nuts and screws (arrows).
| Heat shield to underbody | ||
| Screws and nuts | Tightening torque | 3 Nm |
- Install heat shield (1).
- Tighten nuts and screws (arrows).
| Heat shield to underbody | ||
| Screws and nuts | Tightening torque | 3 Nm |
Install the stiffening plate
- Insert the thrust field (3) on the covers of the steering assembly (2) and position.
- Replace the bolts (arrows).
Parts: Screws
- Tighten screws (arrows).
| Thrust field to front axle support | ||
| M8 Replace screws. | Joining torque Angle of rotation |
25 Nm 70° |
- Tighten down screws (1).
| Underbody protection | ||
| screw | Tightening torque | 3 Nm |
- Insert the undershield (1).
- Tighten all bolts and nuts (arrows).
Follow-up work
- Refer to INSTALLING HEAT SHIELD, TOP .
- Installing conduit on bank 2
- Clip the wiring harness (2) into the clamps (1).
- Installing cable duct at cylinder bank 1.
- Position the conduit (2).
- Tighten the screws (1).
TIGHTENING TORQUESCable duct M6x16 screw Tightening torque 10Nm - Refer to INSTALLING THE OXYGEN SENSOR MONITOR OF CYLINDER BANK 1 .
- Refer to CHECKING THE POSITION OF THE HEAT SHIELD .
- Refer to INSTALLING THE EXPANSION TANK FOR THE CHARGE AIR COOLER .
- Refer to INSTALLING COOLANT EXPANSION TANK .
- Refer to INSTALLING HOLDER OF THE DME CONTROL UNIT FOR CYLINDERS 5 TO 8 .
- Refer to INSTALLING THE LAMBDA OXYGEN SENSOR FOR THE CYLINDERS 5 TO 8 .
- Refer to INSTALLING THE LAMBDA OXYGEN SENSOR FOR THE CYLINDERS 1 TO 4 .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to INSTALLING THE COVER PANEL OF THE SLAVE DME CONTROL UNIT .
- Installing the cover panel of the master DME control unit.
- Position the cover of the master DME control unit (1)
- Engage the cover panel of the master DME control unit (1) downwards with the clamps (2) and the guide pins (3) in the carrier plate of the DME.
- Refer to INSTALLING THE CENTER COWL UPPER PART .
- Refer to INSTALLING TENSION STRUT ON SHOCK TOWER .
- Refer to INSTALLING WINDSHIELD PANEL COVER .
- Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
- Installing the rear right engine compartment cover.
Remove the battery cover .
NOTE: The following step(s) must be performed if the listed component(s) is/are installed.- Remove the special tool 2 452 007 from the battery.
- Install the cover (2).
- Lock the lock (1).
- Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
- Refer to INSTALLING EXHAUST SYSTEM .
- Installing the rear tunnel connecting support.
- Position the connecting support (3) on the rear of the tunnel.
- Tighten the screws (1).TIGHTENING TORQUES
Rear connecting support tunnel to body M8x30 Snug torque
Angle of rotation28Nm
90° - Tighten screws (2).TIGHTENING TORQUES
Undershield Hexagon screw tightening torque 2.6Nm Plastic nut tightening torque 2.6Nm
- Refer to INSTALLING THE REINFORCEMENT STRUT .
- Refer to INSTALLING UNDERSHIELD ON THE FUEL TANK ON THE RIGHT .
- Refer to INSTALLING THE UNDERSHIELD ON THE LEFT FUEL TANK .
- Refer to INSTALLING THE REAR DIFFUSER .
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
