Installing the actuator for the exhaust flap

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

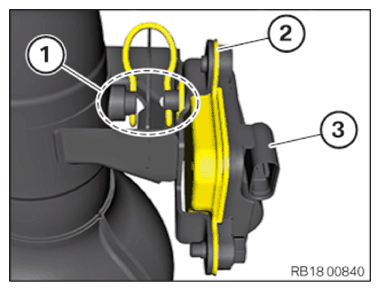

Position the heat shield (2).
Position the actuator for the exhaust flap (3).
Make sure that the shaft of the actuator for the exhaust flap (3) and the shaft of the exhaust flap interlocks correctly in the area (1).

Courtesy of BMW OF NORTH AMERICA, INC.

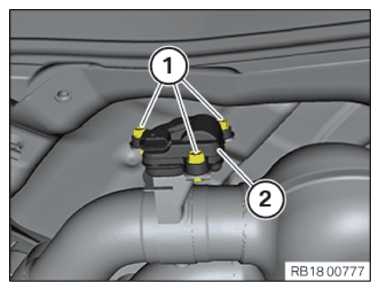

Position the actuator for the exhaust flap (2).
Tighten down screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUES SPECIFICATION

Actuator for the exhaust flap
M6x16	tightening torque	8.5 Nm

Connect the connector (1) with the exhaust flap (2) and lock it.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE REAR DIFFUSER .
