Installing both sport leather steering wheel switches
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

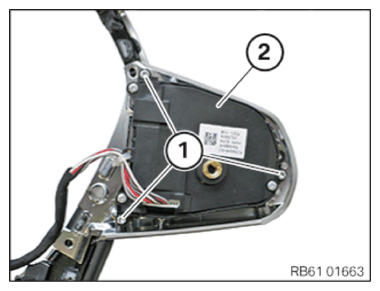

- Position the switch (2) on the design trim and tighten with screws (1) .
TIGHTENING TORQUES SPECIFICATION
| MFL switch | ||
|---|---|---|
| Screw TS5x12 | tightening torque | 1.5 Nm |
- Repeat operation on the right-hand side.
Follow-up work
- Refer to INSTALLING THE DECORATIVE TRIM FOR THE M LEATHER STEERING WHEEL (SA710) .
- Refer to IF INSTALLED: INSTALLING THE SHIFT PADDLE FOR THE AUTOMATIC TRANSMISSION .
- Refer to INSTALLING AIRBAG UNIT OF THE M SPORTS STEERING WHEEL .
- Refer to CONNECTING BATTERY GROUND LEAD .
- Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
