Install the soft-close motor on the trunk lid
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

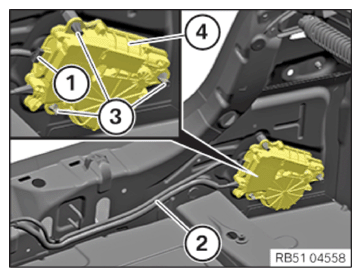

- Install the soft-close motor (4) together with the cable (2).
- Clip the soft-close motor (4) into the holders (3).
- Attach the cable (2).
- Connect the plug connection (1).
Follow-up work
- Refer to INSTALLING THE SHELF IN THE TRUNK ON THE LEFT .
- Refer to INSTALLING LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL AT LEFT .
- Refer to INSTALLING THE REAR SEAT AND THE REAR SEAT BACKREST (NOT FOR THE SA465 PASS-THROUGH SYSTEM) .
- Refer to INSTALLING LOADING EDGE TRIM .
- Refer to INSTALLING THE LUGGAGE COMPARTMENT FLOOR COVERING .
