Installing the model inscription
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
Notes on component bonding using adhesive tape form the basis for these repair instructions and must be observed without fail.
For additional information see: 51 00... NOTES ON COMPONENT BONDING WITH ADHESIVE TAPE .
Notes on component bonding using adhesive tape form the basis for these repair instructions and must be observed without fail.
For additional information see: 51 00... NOTES ON COMPONENT BONDING WITH ADHESIVE TAPE .
CAUTION:
Laser beam.
Injury hazard!
Injury hazard!
- Do not look into the laser beam.
- Park the vehicle and the special tool 2 407 566 on a flat and even surface.
- Mount the laser on the tripod.
- Switch on laser (Position without automatic level).
- Activate laser horizontally and vertically.
- Position the tool behind the vehicle.

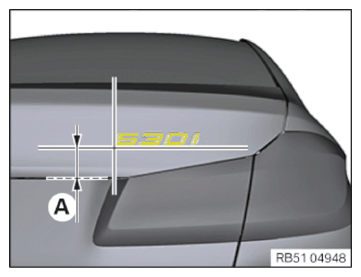

Align the horizontal laser beam on the edge of the tailgate with the dimension (A=5.5 cm).
Align the vertical laser beam on the tail light as shown.
- Remove adhesive residue and clean the bonding surface with solvent cleaner R2.
- Detach the liner (protective film) from the adhesive strip of the model inscription.
- Align the model inscription on the laser beam and press onto the tailgate.
