Installing the rear emblem
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
Notes on component bonding using adhesive tape form the basis for these repair instructions and must be observed without fail.
For additional information see: 51 00... NOTES ON COMPONENT BONDING WITH ADHESIVE TAPE .
Notes on component bonding using adhesive tape form the basis for these repair instructions and must be observed without fail.
For additional information see: 51 00... NOTES ON COMPONENT BONDING WITH ADHESIVE TAPE .
- Replace the emblem.
Parts: Emblem

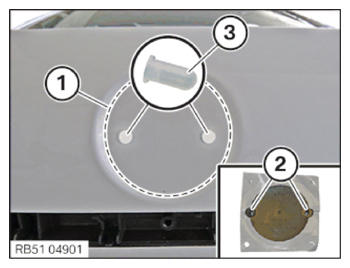

- Remove the adhesive residues on the body and clean the bonding surface (1).CONSUMABLE DESCRIPTION
Cleaning agent R2 500 ml 83190417324 - Check the guide pins (2).
The guide pins (2) must not be damaged or missing.
- Replace the grommets (3).
Parts: Grommets
- Coat the guide pins (2) using lubricant.INSTALLATION AID
Lubricants G14 900 ml, Can 83232360412 - Detach the liner from the adhesive strip of the BMW nameplate.

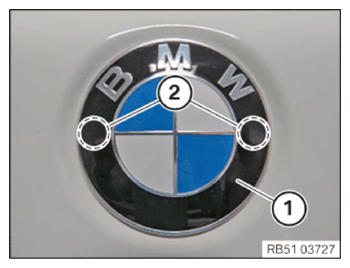

- Press the badge (1) onto the guide pin (2) and on the adhesive strip.
