Replacing transmission oil thermostat
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

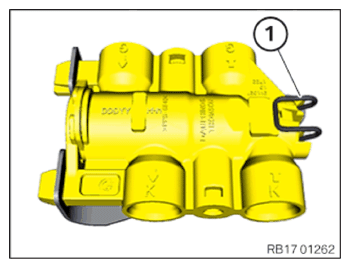

- Unlock the retaining clip (1) .

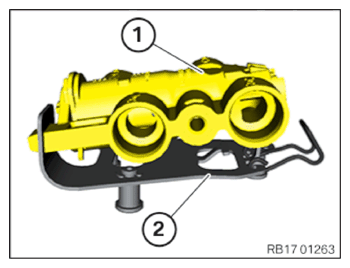

- Remove the transmission oil thermostat (1) upwards out of the holder (2) .
- Replace the transmission oil thermostat (1)
.
Parts: Transmission oil thermostat
- Feed the transmission oil thermostat (1) downwards into the holder (2) and position it.
- Lock the retaining clip (1) .
