Removing oil feed line for engine oil cooler on radiator

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Hot surfaces.
Risk of burning!

Perform all work only on components that have cooled down.

WARNING: Hot fluids.
Risk of scalding!

Conduct all work in the vehicle wearing appropriate personal protective equipment only.

NOTE: TECHNICAL INFORMATION
Driving without the strut brace/front-end strut or tension strut is not permitted.

NOTE: TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.

Preliminary work

Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
Refer to REMOVING THE COVER IN THE ENGINE COMPARTMENT ON THE LEFT .
Refer to REMOVING THE COVER IN THE ENGINE COMPARTMENT ON THE RIGHT .
Refer to RELEASING LEFT FRONT-END STRUT .
Refer to RELEASING THE RIGHT FRONT-END STRUT .
Refer to REMOVING FRONT CROSS CONNECTION .
Refer to REMOVING LEFT INTAKE SILENCER HOUSING .
Refer to REMOVING RIGHT INTAKE SILENCER HOUSING .
Refer to REMOVING THE REAR TOP CROSS CONNECTION .
Refer to REMOVING THE FRONT LEFT WHEEL .
Refer to REMOVING THE COVER OF THE STEERING ASSEMBLY ON THE RIGHT .
Refer to REMOVING FAN COWL WITH ELECTRIC MOTOR .
Refer to REMOVING THE STIFFENING PLATE .
Refer to DETACHING THE WIRING HARNESS OF THE EPS FROM THE FRONT AXLE SUPPORT .
Refer to LOOSENING THE ANTI-ROLL BAR LINK ON THE LEFT AND RIGHT FROM THE ANTI-ROLL BAR .
Refer to RELEASING THE ANTI-ROLL BAR FROM THE FRONT AXLE SUPPORT .

NOTE: Only perform the operation on the left side.

Loosen nut (2).
Pull oil feed line (1) with the O-ring to the rear out of the engine oil cooler (3), and disconnect.

Courtesy of BMW OF NORTH AMERICA, INC.

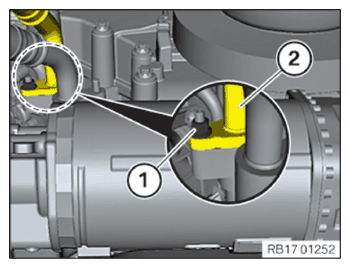

Unfasten nut (1).
Feed out oil feed line (2) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.
