When replacing the upstream engine oil cooler: Remount the crash pads

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

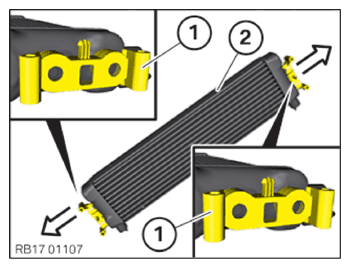

Release the crash pads (1) from the upstream radiator (2).
Replace the upstream radiator (2).
Parts: Upstream radiator

Courtesy of BMW OF NORTH AMERICA, INC.

Mount the crash pads (1) on the upstream radiator (2).

Courtesy of BMW OF NORTH AMERICA, INC.
