Replacing the left external radiator and retrofitting or remounting the stone chip guard
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

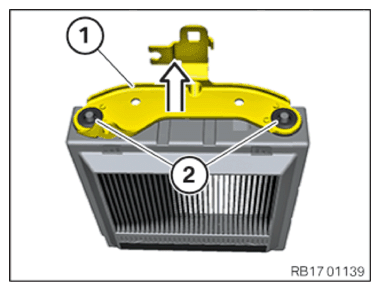

- Remove the holder (1) from the frame with the rubber mounts (2) in arrow direction upwards.

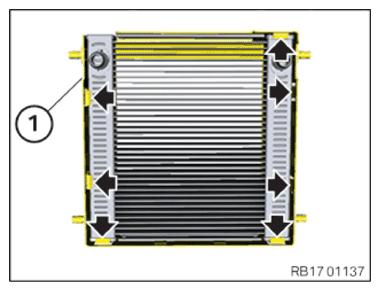

- Disengage the frame (1) at the detents in the area of the arrows.
- Remove coolant radiator from the frame (1).
- Retrofit the stone chip guard (1).
Parts: Stone chip guard
- Retrofit the frame with the stone chip guard (1) only when replacing the coolant radiator.
- Install the coolant radiator in the frames with stone chip guard (1).
- Ensure that the coolant radiator snaps-in audibly at the detents of the frame with stone chip guard (1) In the area of the arrows.

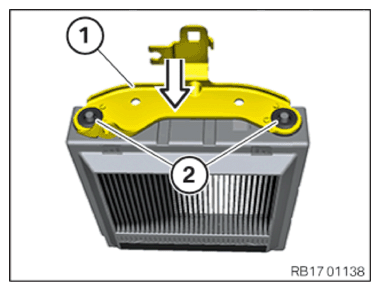

- Mount holder (1) with the rubber mounts (2) toward the bottom.
