Closing the low-temperature coolant circuit

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.

Close the external radiator

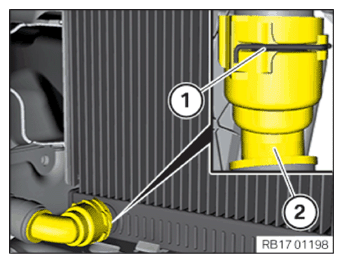

Slide the coolant lines (2) forwards.
The retaining clips (1) must audibly engage.

Courtesy of BMW OF NORTH AMERICA, INC.

Slide the coolant lines (2) forwards.
The retaining clips (1) must audibly engage.

Courtesy of BMW OF NORTH AMERICA, INC.

Slide the coolant lines (2) forwards.
The retaining clips (1) must audibly engage.

Courtesy of BMW OF NORTH AMERICA, INC.
