Installing the steering wheel (M Sport steering wheel)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
Check the neutral position of the coil spring
NOTE:
TECHNICAL INFORMATION
Different variants may be installed depending on the vehicle equipment.
Different variants may be installed depending on the vehicle equipment.
Check
- Version A:
Check the mark (1) on the coil spring in the inspection glass (2).
Result
» The mark (1) on the coil spring is not visible.
Measure
- Turn the coil spring cassette until the mark (1) on the coil spring visible in the inspection glass (2).
Check
- Version B:
Check the mark (1) on the coil spring in the inspection glass (2).
Result
» The mark (1) on the coil spring is not visible.
Measure
- Turn the coil spring cassette until the mark (1) on the coil spring visible in the inspection glass (2).
- Align mark (1) on steering wheel to mark (2) on steering column.
- Position the steering wheel.
Check

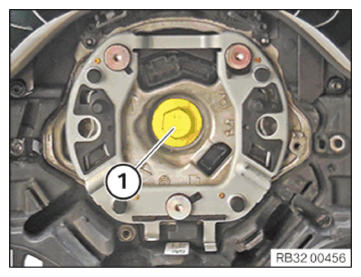

- Possibly, a microencapsulated screw (1) has been installed.
- Check the screw connection.
Result
» The screw (1) is micro-encapsulated.
Measure
- Clean thread in steering column.
Replace the screw (1).
Parts: Screw
- Tighten down screw (1).
TIGHTENING TORQUE SPECIFICATIONS
| Steering wheel to steering column | ||
| M14 Only with microencapsulated screw: Replace screw. | tightening torque | 62.5 Nm |
Follow-up work
- Refer to IF INSTALLED: INSTALLING THE VIBRATION ACTUATOR (M SPORT STEERING WHEEL) .
- Refer to INSTALLING THE WIRING HARNESS (M SPORT STEERING WHEEL) .
- Refer to INSTALLING SPORT BUTTON .
- Refer to INSTALLING THE DECORATIVE TRIM FOR THE M LEATHER STEERING WHEEL (SA710) .
- Refer to INSTALLING THE SHIFT PADDLE FOR THE AUTOMATIC TRANSMISSION .
- Refer to INSTALLING AIRBAG UNIT .
- Refer to CONNECTING BATTERY GROUND LEAD .
