Removing the bellows for the steering gear

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: TECHNICAL INFORMATION
Perform wheel alignment after installation.

NOTE: Description is for left component only. Procedure on the right side is identical.

Preliminary work

Refer to REMOVING THE WHEEL .
Refer to REMOVING THE FRONT UNDERBODY PROTECTION .
Refer to REMOVING THE TIE ROD END .

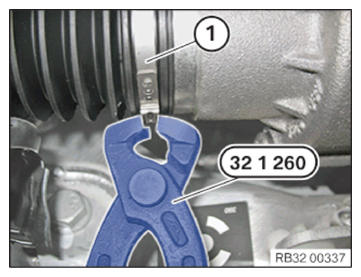

Cut diagonally across the ear hose clamp (1) using special tool 0 494 152 (32 1 260) .

Courtesy of BMW OF NORTH AMERICA, INC.

Remove the strap clamp (1).
Detach the bellows (2) from tie rod.

Courtesy of BMW OF NORTH AMERICA, INC.
