Installing the front brake pad wear sensor
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

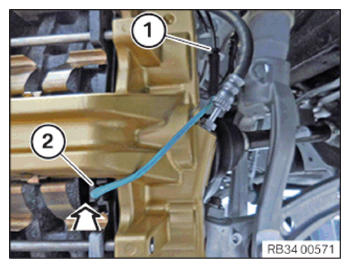

- Attach the cable of the brake pad wear sensor (2) in the holder (1).
- Install the brake pad wear sensor (2) in the brake pad in the direction of the arrow.
Ensure brake pad wear sensor fits correctly in brake pad.

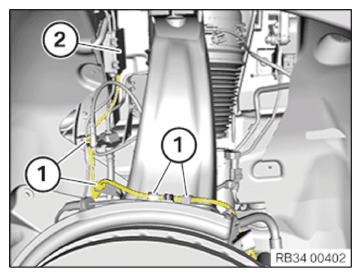

- Attach cable of brake pad wear sensor in holders (1).
- Connect the plug connection.
- Close sealing cap (2).
Follow-up work
- Refer to ATTACHING THE FRONT LEFT WHEEL .
