Remove brake booster
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
Use only BMW-approved brake fluids.
For additional information see: "Fluid Capacities" tab for the selected vehicle.
Use only BMW-approved brake fluids.
For additional information see: "Fluid Capacities" tab for the selected vehicle.
Preliminary work
- Refer to REMOVING THE COVER OF THE ENGINE COMPARTMENT AT THE REAR LEFT .
- Removing the cover of the rear right engine compartment.
- Loosen the lock (1)
- Remove the cover (2).
Covering the vehicle battery
WARNING: Unprotected battery terminals. Risk of short circuits! Risk of fire!- Cover the vehicle battery
NOTE: The following step(s) must be performed if the listed component(s) is/are installed.- Cover the vehicle battery with the special tool 2 452 007 as shown.
- Refer to REMOVING LEFT AND RIGHT WIPER ARM .
- Refer to REMOVING THE COWL COVER .
- Refer to REMOVING WIPER CONSOLE .
- Refer to REMOVING THE TRIM PANEL FOR PEDAL ASSEMBLY .
- Refer to REMOVING EXPANSION TANK .
- Refer to REMOVING THE TANDEM BRAKE MASTER CYLINDER .
- Refer to REMOVING THE BRAKE LIGHT SWITCH .
- Remove air duct (1).

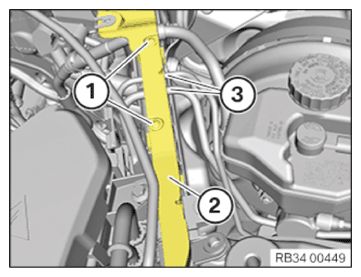

- Loosen the screws (1) and remove the cover (2).
- Expose brake lines (3).

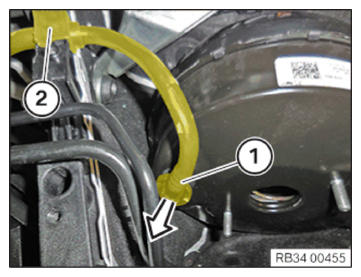

- Remove check valve (1) from brake booster in the arrow direction.
- Uncover vacuum line from the holder (2).
- Retract release tool 2 409 646 between brake pedal and brake booster.
- Put support (1) of the release tool 2 409 646 on the bearing bracket. If necessary position the support fixed by rotating the screw on the release tool.
- Press the release tool 2 409 646 in arrow direction and lever out brake pedal from the brake booster.
- Loosen nuts (1).

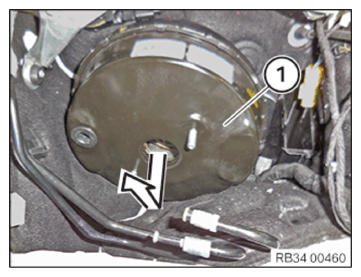

- Unscrew the brake booster (1) from the firewall.
