Install the pressure sensor on the left charge air cooler
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

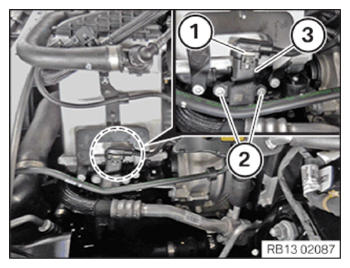

- Position pressure sensor and charge air cooler (3).
- Tighten down screws (2).
TIGHTENING TORQUES SPECIFICATION
| Pressure sensor | ||
| screw | Tightening torque | 2.5 Nm |
- Connect connectors (1) and lock.
Follow-up work
- Refer to INSTALLING LEFT INTAKE SILENCER HOUSING .
- Refer to TIGHTENING THE LEFT FRONT-END STRUT .
- Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT ON THE LEFT .
- Refer to INSTALLING THE COVER PANEL OF THE SLAVE DME CONTROL UNIT .
