Removing the rubber window seal for the door window glass (with side window removed)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

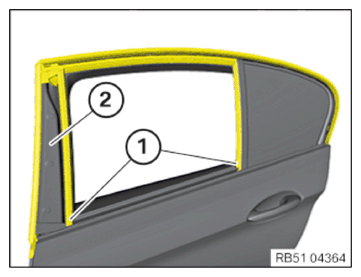

- Pull out the rubber window seal (1)
from the window guide rails.
- Remove rubber window seal (1)
from window frame (2)
and leave to hang downwards.
 Courtesy of BMW OF NORTH AMERICA, INC.
|

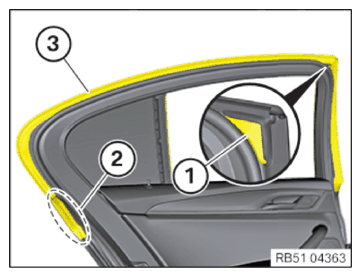

- Lever out the cover (1)
and remove.
- Release the rubber window seal (3)
from the mountings (2)
.
- Remove the rubber window seal (3)
.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
