Replacing the bellows of the joint on the transmission end

• Loosen the low profile clip (1).
• Cut ear hose clamp (2) open transversely to ear and remove.
• Pull back the bellows (3).
• Detach the joint housing (4).

Courtesy of BMW OF NORTH AMERICA, INC.

• Release the circlip (1) for the tripod (2) from the output shaft (3).

Courtesy of BMW OF NORTH AMERICA, INC.

• Seal bore of output shaft with screw (2).

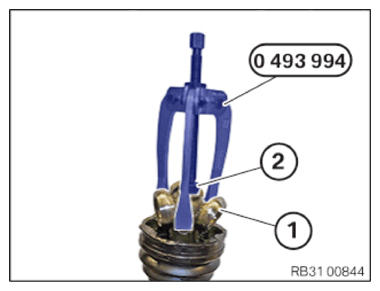

• Detach tripod (1) with special tool 0 493 994 (11 8 310)  .
• Clean the tripod (1).

Courtesy of BMW OF NORTH AMERICA, INC.

• Remove all traces of previous lubricant.
• Detach the bellows (1) off the output shaft (2).

Courtesy of BMW OF NORTH AMERICA, INC.

• Replace bellows.

Parts:  gaiter

• Slide bellows (1) onto output shaft (2).

Courtesy of BMW OF NORTH AMERICA, INC.

• Mount tripod (2) on the output shaft in such a way that the flat side (1) points towards the circlip.

Courtesy of BMW OF NORTH AMERICA, INC.

• Replace the circlip (1).

Parts:  Circlip

• Mount the circlip (1) for the tripod (2) on the output shaft (3).
• Grease tripod and joint housing with lubricant "One Lube Improved".

Courtesy of BMW OF NORTH AMERICA, INC.

• Mount the joint housing (4) on the tripod.
• Mount the bellows (3) on the joint housing (4).
• Replace the low profile hose clamp (1) and the ear hose clamp (2).

Parts:  Low profile hose clamp and ear hose clamp

• Fasten bellows (3) with low profile hose clamp (1) and ear hose clamp (2).

Align low profile hose clamp (1) such that the hook fastener is on the flattened side of joint housing (4).

Courtesy of BMW OF NORTH AMERICA, INC.

Ear hose clamp gap dimension
Courtesy of BMW OF NORTH AMERICA, INC.	Dimension [A]	max. 1 mm
