Remove bearing bracket
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly
.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Observe safety instructions on raising the vehicle using a vehicle hoist.
- For additional information see: 00... RAISING THE VEHICLE USING A VEHICLE LIFT .
Preliminary work
- Refer to REMOVING THE COVER IN THE ENGINE COMPARTMENT AT THE RIGHT REAR .
- Refer to REMOVING THE RIGHT SIDE HOOD SEAL .
- Refer to PARTIALLY RELEASING THE FRONT RIGHT SPRING STRUT .
- Refer to REMOVING THE FRONT LEFT AND RIGHT WHEELS .
- Refer to RELEASING THE OUTPUT SHAFT, RIGHT, FROM THE WHEEL BEARING .
- Refer to RELEASING THE TOP RIGHT WISHBONE FROM THE SWIVEL BEARING .
- Refer to SECURING THE SWIVEL BEARING .
- Refer to REMOVING THE RIGHT SPRING STRUT HOLDER .
- Refer to REMOVING THE COVER OF THE STEERING ASSEMBLY ON THE LEFT AND RIGHT .
- Refer to REMOVING THE FRONT UNDERBODY PROTECTION .
- Refer to REMOVING THE STIFFENING PLATE .
- Refer to REMOVING RIGHT OUTPUT SHAFT .

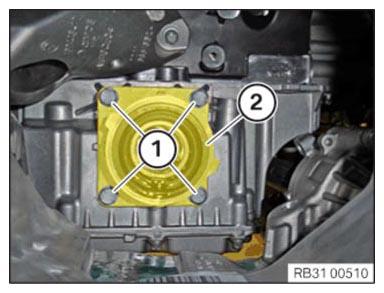

- Loosen screws (1) .
- Remove bearing bracket (2) .
