Installing the anti-roll bar link for the anti-roll bar
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

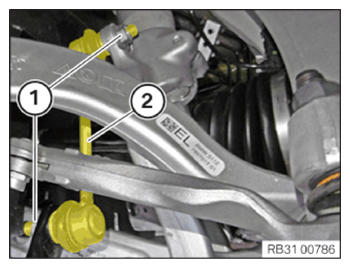

- Position anti-roll bar link (2).
- Replace nuts (1).
Parts: Nuts
- Tighten nuts (1).
NOTE:
Counter-hold at the Torx socket.
TIGHTENING TORQUE SPECIFICATIONS
| Anti-roll bar link on anti-roll bar/spring strut (air suspension) | ||
| M12 Replace nuts. | tightening torque | 100 Nm |
Follow-up work
- Refer to ATTACHING THE FRONT LEFT WHEEL .
