Removing the trim panel for the storage shelf
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work
- Refer to REMOVING BOTH C-PILLAR TRIM PANELS .
- Refer to REMOVING LEFT AND RIGHT BACKREST SIDE SECTION .
- Refer to REMOVING REAR SEAT BENCH .
- Version with SA416:
Release the screws (1) the trunk.
- Loosen screws (1).
- Guide out seat belt end fittings (2) from the body.NOTE: The description is provided only at one component. The procedure is the same for all other components.

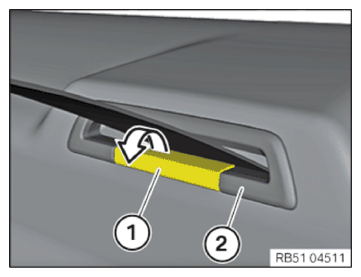

- Unclip the cover (1) in arrow direction.
- Feed out the seat belt finisher strip (2).
- Loosen the expanding rivet (1).
- Lift the trim panel (2) for the rear shelf a little and unlock and disconnect the underlying plug connections.
- Remove the trim panel (2) for the rear shelf to the front and feed out the safety belts (3).
