Installing the trim panel for the rear shelf

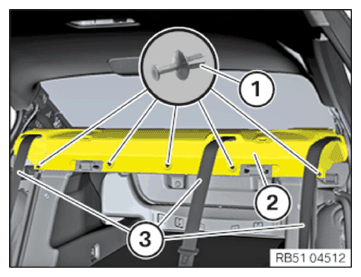

• Install trim panel (2) for the rear shelf and guide in the seat belts (3).
• Lift the trim panel (2) for the rear shelf slightly and connect and lock the connectors underneath.
• Correctly position the trim panel (2) for the rear shelf and attach the expanding rivet (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

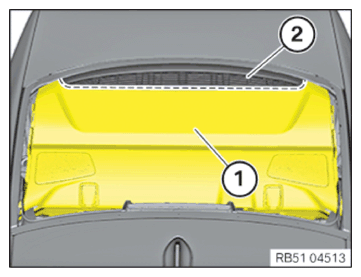

• Check the correct fit of the trim panel for the rear shelf (1) on the ventilation grille (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: The description is provided only at one component. The procedure is the same for all other components.

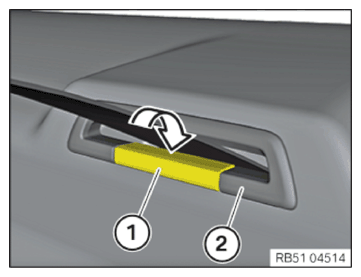

• Insert the seat belt finisher strip (2).
• Clip in the cover (1) in the arrow direction.

  Courtesy of BMW OF NORTH AMERICA, INC.

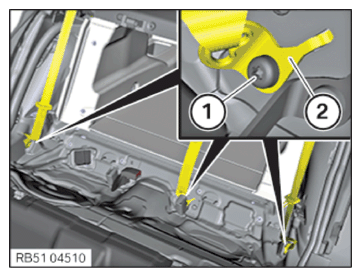

• Guide the seat belt end fitting (2) into the body.
• Replace screws (1).

  Parts:  Screws

• Tighten down screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  End lining to body
  M10 Replace screw.	Tightening torque	42 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

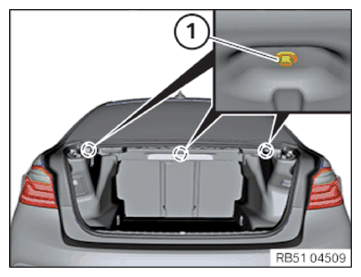

• With SA416 roller sunblinds:

  Tighten the screws (1) in the trunk.

  TIGHTENING TORQUE SPECIFICATIONS



  Roller sunblind

  4 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE REAR SEAT BENCH .
• Refer to INSTALLING THE LEFT AND RIGHT BACKREST SIDE SECTION .
• Refer to INSTALLING BOTH C-PILLAR TRIM PANELS .
