Install roller sunblind
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
Conduct the following operation with the assistance of a second person.
Conduct the following operation with the assistance of a second person.
- Extend the roller sunblind electrically by approximately 10 cm.
When extending while removed, make sure the mechanics of the roller sunblind move freely. Injury hazard by trapping!
Disconnect the plug connection on the roller sunblind to interrupt the extension of the roller sunblind.
- Insert the roller sunblind into the rear deck from the bottom.
- Press together the rear groove (1) and the front guide (2) a little and feed into the rear groove (1) on the rear deck.
- Feed in the front guide (2).
- Check the rear groove (1) and the front guide (2) for correct fit.

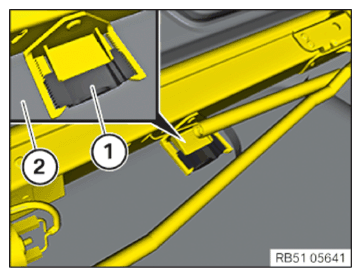

- Move the spacers (1) forward until they rest against the rear deck (2) without gaps.
If you forget to carry out this step, the rear deck may make a rattling noise on rough road surfaces.

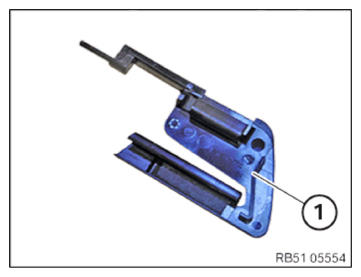

- Check the protective caps (1) on the left and right for damage and replace as needed.
- Insert the protective cap (1) on the left and right at the rear first and then clip in at the front.
Make sure the protective caps (1) are clipped in and fitted correctly.
- After installing the rear deck with the roller sunblind and bolting it to the body, (completely) extend and retract the roller sunblind 5 times and test it for correct function.
