Install the speaker cover on the rear door trim panel

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Description is for left component only. Procedure on the right side is identical.

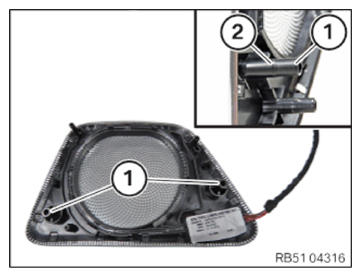

Saw off the welding pins (1) along the molding (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Remove welding remnants on door trim panel with a scalpel.

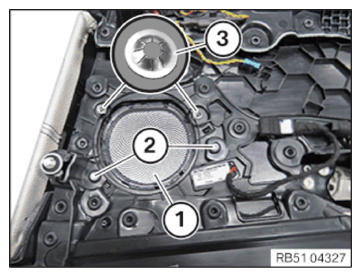

Install speaker cover (1).
NOTE: Welding pins must not protrude from the door trim panel.
Secure the speaker cover (1) with the lock washers (3).

Tighten the repair screws (2).

TIGHTENING TORQUE SPECIFICATIONS

Repair screw to door trim panel
Oval-head screw TS4x10ISA	2.3 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
