Attach the armrest on the door trim panel
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Description is for left component only. Procedure on the right side is identical.

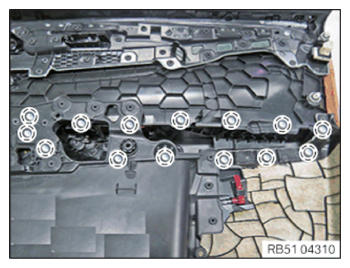

- Saw off all the welding pins (1) on the armrest (2) along the moldings (3).
- Remove welding remnants on door trim panel with a scalpel.
- Install armrest.NOTE: Welding pins must not protrude from the door trim panel.
- Screw the repair screws into the armrest and tighten.TIGHTENING TORQUE SPECIFICATIONS
Repair screw to door trim panel Oval-head screw TS4x10ISA 2.3 Nm Installing door handle
NOTE: Description is for left component only. Procedure on the right side is identical. - Saw off the welding pins (1) along the molding (2).
- Remove welding remnants on door trim panel with a scalpel.
- Feed door handle into the door trim panel and the armrest.NOTE: Welding pins must not protrude from the door trim panel.
- Tighten the screws (1).TIGHTENING TORQUE SPECIFICATIONS
Repair screw to door trim panel Oval-head screw TS4x10 ISA 2.3 Nm
Follow-up work
- Refer to INSTALLING FRONT DOOR TRIM PANEL .
- Refer to INSTALLING THE MIRROR TRIANGLE COVER .
- Refer to ATTACHING THE COVER TO THE DOOR HANDLE .
