Installing the coolant feed line for the exhaust turbocharger (charge air cooler removed)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

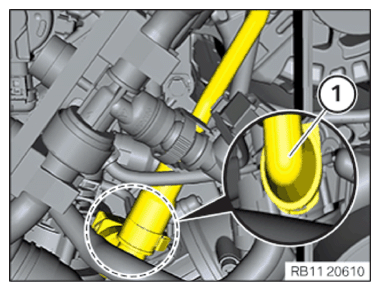

- Feed in the coolant feed line box (1) in a downwards direction.
- Connect and lock the coolant feed line (1)
.
- Slide on the coolant feed line.

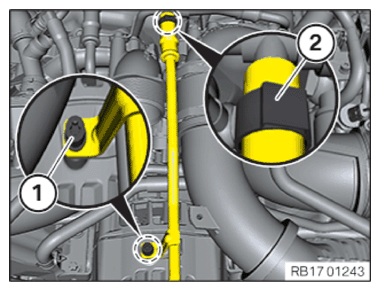

- Replace the hose clamp (2)
.
Parts: Hose clamp
- Secure hose clamp (2) .
- Tighten down screw (1) .
TIGHTENING TORQUES SPECIFICATION
| Coolant lines to alternator | ||
| M6x16 screw | Tightening torque | 8 Nm |
