Raising the vehicle with the floor jack
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
RISK OF DAMAGE
Component damage while lifting the vehicle with a floor jack.
Components can become damaged when lifting a vehicle with the floor jack.
Component damage while lifting the vehicle with a floor jack.
Components can become damaged when lifting a vehicle with the floor jack.
- Only use BMW distributed/approved floor jacks, whose mounting plates are furnished with a rubber component.
- Perform regular maintenance on the floor jack and check for proper function before each use.
- Check the mounting plate on the floor jack for damage prior to each use, replace if necessary.
- Observe the instructions of the repair instructions when positioning the floor jack.

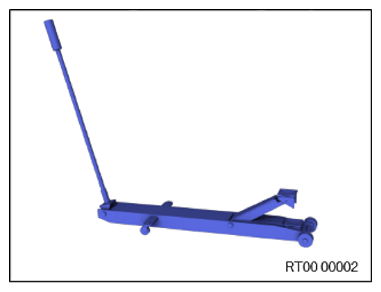

- Get the floor jack ready.

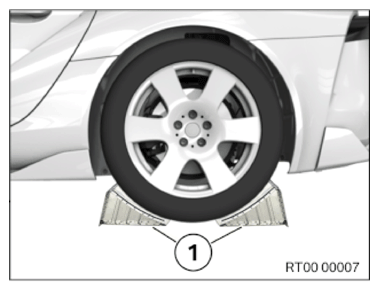

- Use chocks (1) to secure wheels that will not be raised.
NOTE:
TECHNICAL INFORMATION
Vehicles can be lifted with floor jacks at the thrust field of the front axle support.
Vehicles can be lifted with floor jacks at the thrust field of the front axle support.

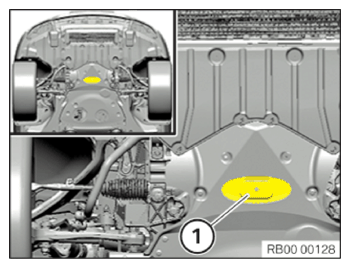

- Position the mounting plate of the floor jack under the front subframe in the marked area (1).
NOTE:
TECHNICAL INFORMATION
Vehicles can be lifted at the jacking points with floor jacks and vehicle lifts.
Vehicles can be lifted at the jacking points with floor jacks and vehicle lifts.

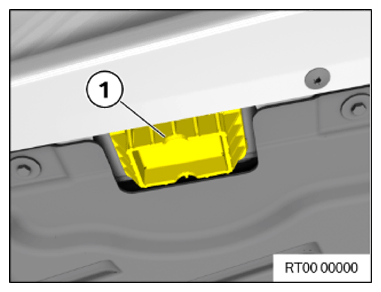

- Check the jacking points (1) for damage and replace, if necessary.
- Position the floor jack mounting plate under the jacking point (1). Make sure not to damage adjacent components.
NOTE:
TECHNICAL INFORMATION
Vehicles can be lifted with floor jacks at the rear axle differential.
Vehicles can be lifted with floor jacks at the rear axle differential.

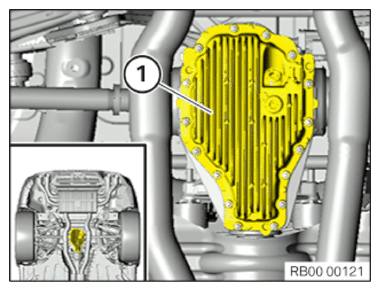

- Center the floor jack mounting plate under the rear axle differential (1).
- Raise vehicle.
