Installing the rear emblem

NOTE: TECHNICAL INFORMATION
Notes on component bonding using adhesive tape form the basis for these repair instructions and must be observed without fail.
For additional information see: NOTES ON COMPONENT BONDING WITH ADHESIVE TAPE .

Remove adhesive residue on the tailgate and clean the adhesive area.

CONSUMABLE SPECIFICATION

Cleaning agent R2

500 ml

83190417324

TECHNICAL DATA SPECIFICATION

Air drying time after cleaning
	Cleaning agent R2	2 min

Replace the emblem.
Parts: Emblem

Check
Check the guide pins (1) and the nozzles (2) for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» The guide pins (1) are damaged.

Measure
- Replace the rear emblem.
Parts: Emblem at the rear

Result

» The nozzles (2) are damaged.

Measure
- Replace the nozzles (2).
Parts: Grommets

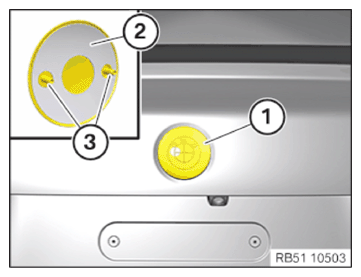

Coat the guide pins (3) of the emblem (1) with lubricant.
INSTALLATION AID SPECIFICATION

Lubricants G14 900 ml, Can 83232360412
Detach the liner from the bonding surface (2) of the emblem (1).
Insert the emblem (1) with the guide pins (3) in the nozzles and press it all around.

Courtesy of BMW OF NORTH AMERICA, INC.
