Engine And Transmission Mounting -- Repair (G42)
>>
22 32 Transmission Mounting
>>
22 32 070 Removing and installing/replacing transmission mount support (230i xDrive, M240i xDrive)
>>
Removing transmission mount support
Removing transmission mount support
Preliminary work
Refer to
REMOVING REAR UNDERBODY PROTECTION
.
Loosen nuts (1).
Remove retaining plate (2).
Courtesy of BMW OF NORTH AMERICA, INC.

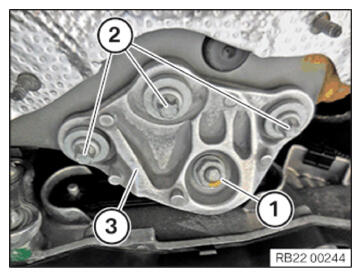

Loosen nut (1).
Loosen screws (2).
Remove transmission support holder (3).
Courtesy of BMW OF NORTH AMERICA, INC.
